T&S Brass B-0113-B
Send Print
  1. pin-int

T&S Brass B-0113-B

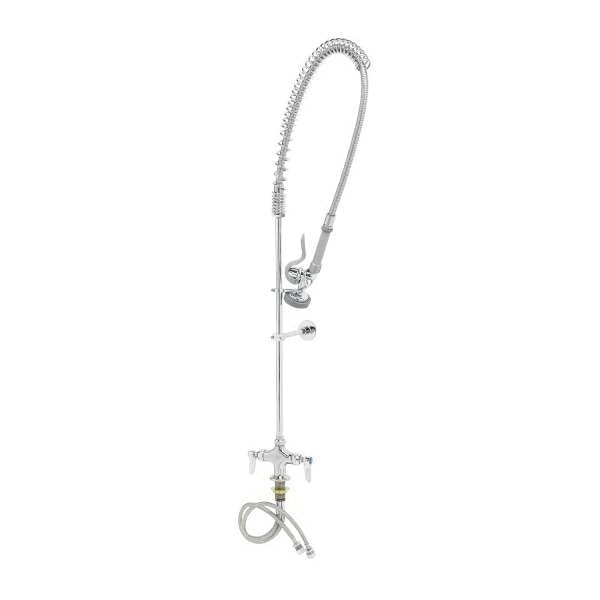

Brass Pre Rinse Mixing Faucet, Polished Chrome, 1.15 gpm at 60 psi, 6 in Adjustable Wall Bracket

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TSB113B
  • MPN: B-0113-B
  • UPC: 671262113144
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Cartridge Type      :      1/4-Turn Compression
Faucet Connection Size      :      5/8 in
Faucet Connection Type      :      Compression
Faucet Mount      :      Deck
Finish      :      Polished Chrome
Flow Rate      :      1.15 gpm at 60 psi
Handle Type      :      Lever
Item Name      :      Pre Rinse Mixing Faucet
Material      :      Brass
Number of Holes      :      1
Pressure Rating      :      20 - 125 psi
Temperature Rating      :      40 - 140 deg F
  • 1-hole deck mount mixing faucet with polished chrome-plated brass body
  • Easy Install riser for quick installation
  • 44 in flexible stainless steel hose with heat-resistant gray handle and hold-down ring
  • 1.15 gpm spray valve
  • 1/4-turn Eterna compression cartridges with spring checks to prevent cross flow of water
  • Lever handle with color-coded indexes
  • 6 in adjustable wall bracket
  • 18 in flexible stainless steel supply hoses with 1/2 in NPSM, 5/8 in compression connections
  • Material polished chrome-plated brass body, riser and spray valve body, stainless steel hose and chrome-plated metal handles

Standards/Certifications: ASME A112.18.1, ASTM F2324, BAA/ARRA, CSA B125.1, EP Act 2005, ANSI/NSF 61 and 372 certified

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28318_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28336_Spec.pdf
