T&S Brass B-0020-H

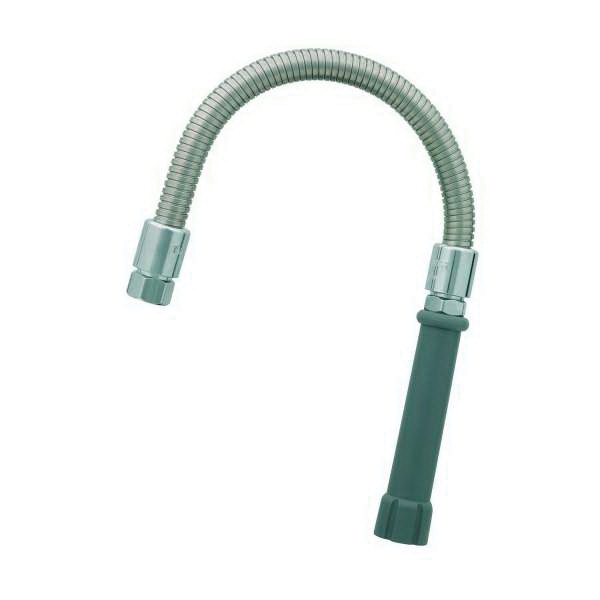

Chrome-Plated Stainless Steel Flexible Hose with Gray Handle, 3/4 in, NPT, 20 in L, Lead-Free

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TSB20
  • MPN: B-0020-H
  • UPC: 671262000185
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      NPT
Finish      :      Chrome-Plated
Item Name      :      Flexible Hose with Gray Handle
Length      :      20 in
Material      :      Stainless Steel
Pressure Rating      :      20 - 125 psi
Temperature Rating      :      40 - 140 deg F
  • Lead-free
  • Polyurethane inner tubing
  • Includes heat-resistant thermoplastic gray handle, hose washers and polished chrome-plated brass end fittings
  • Commonwealth of Massachusetts
  • 3-years limited warranty
  • 6.77 gpm at 60 psi

Standards/Certifications: ASME A112.18.1, CSA B125.1, NSF 61 section 9 and NSF 372 certified, BAA/ARRA compliant

  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28343_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28343_Tech.pdf
