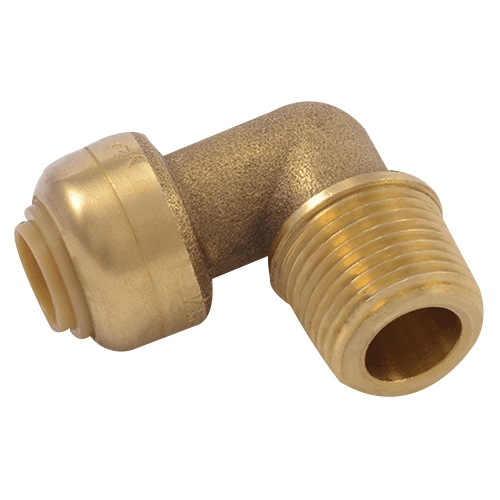

SharkBite U276LF

Natural DZR Brass 90 deg Reducing Elbow, 1/4 x 3/8 in CTS, Push-to-Connect x MNPT, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: U276LF
  • MPN: U276LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1/4 x 3/8 in CTS
Connection Type      :      Push-to-Connect x MNPT
Finish      :      Natural
Item Name      :      Reducing Elbow
Length      :      1.16 in
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Innovative push-to-connect design allows for quick and easy installation of 90 deg elbow fitting that connects the hot water line to the dishwasher. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • Lead-free
  • Compatible with PEX copper, CPVC, PE-RT and HDPE pipe
  • No special tools, crimping, glue or soldering is needed
  • Remove using a disconnect clip or disconnect tongs (both sold separately)
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14 and 372, ANSI/NSF/CAN 61 certified, ASSE 1061, IAPMO, UPC, IPC and cUPC listed, CSA B125.3, CAN/ULC S102.2 and S101, UL 263, ASTM E84, E119

Applications: For PEX, copper, CPVC, PE-RT and HDPE pipes
