SharkBite U334LF

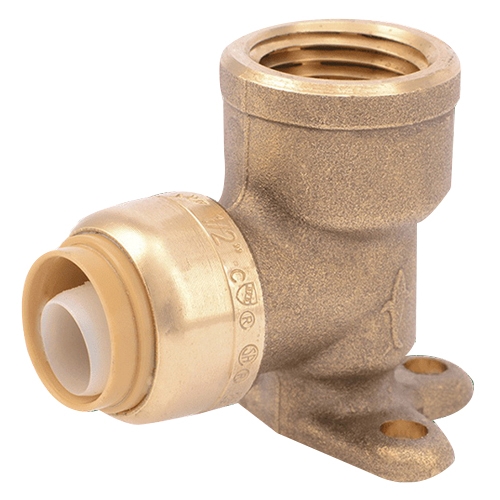

Natural DZR Brass 90 deg Drop Ear Elbow, 1/2 in, Push-to-Connect x FNPT, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: U334LF
  • MPN: U334LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1/2 in CTS
Connection Type      :      Push-to-Connect x FNPT
Finish      :      Natural
Item Name      :      Drop Ear Elbow
Length      :      1.77 in
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Make a 90 deg connection and transition to a threaded pipe. Has mounting ears with holes for securing to a support surface. Typically used for installing shower arms and tub spouts. Innovative push-to-connect design makes for quick and easy installation. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • Lead-free
  • Compatible with PEX copper, CPVC, PE-RT and HDPE pipe
  • No special tools, crimping, glue or soldering is needed
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Remove using a disconnect clip or disconnect tongs (both sold separately)
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14 and 372, ANSI/NSF/CAN 61 certified, ASSE 1061, IAPMO, UPC, IPC and cUPC listed, CSA B125.3, CAN/ULC S102.2 and S101, UL 263, ASTM E84, E119

Applications: For installing shower arms and tub spouts
