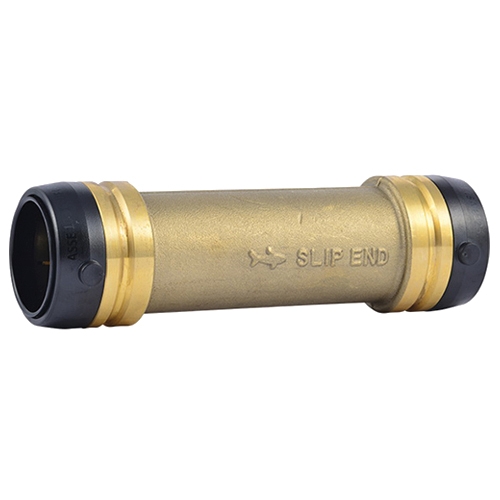

SharkBite UXL0635

Natural DZR Brass Large Diameter Slip Coupling, 1-1/4 in, Push-to-Connect, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: SB0635
  • MPN: UXL0635
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 in
Connection Type      :      Push-to-Connect
Finish      :      Natural
Item Name      :      Slip Coupling
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F
Type      :      Large Diameter

Innovative push-to-connect design makes for quick and easy installation. Slip couplings are the most efficient way to repair a burst pipe or leak. A slip fitting does the job of two couplings and extra pipe. Only one end of the coupling has a stop, allowing the opposite end to slide freely over the end of a pipe. The fittings are then released using a disconnect tool and slide back onto the other end of the pipe for a successful connection and leak repair.

  • Lead-free
  • Ideal for making quick repairs in existing water lines
  • A disconnect clip or disconnect tongs are required to use this product
  • Keep on hand for an emergency freeze or repair
  • Compatible with copper and CPVC pipe only
  • No special tools, crimping, glue or soldering is needed
  • Can be installed in wet lines
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14 and 372, ANSI/NSF/CAN 61 certified, ASSE 1061, IAPMO, UPC, IPC and cUPC listed, CSA B125.3, CAN/ULC S102.2 and S101, UL 263, ASTM E84, E119

Applications: For quick repairs on copper and CPVC pipe

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Spec.pdf
