SharkBite UXLBV41

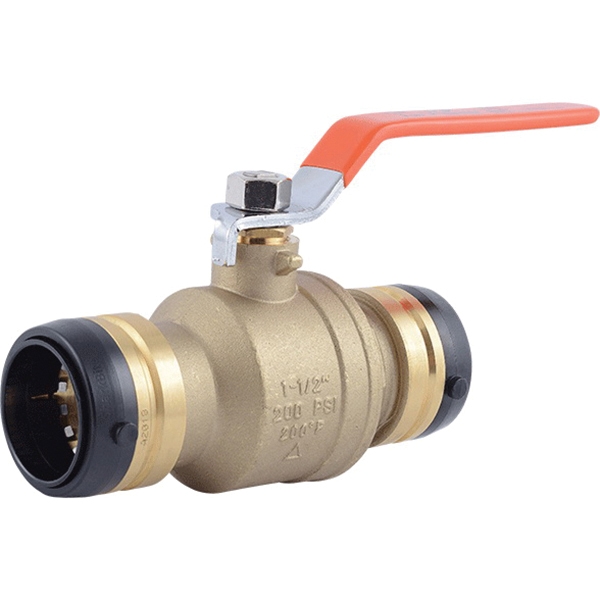

DZR Brass Large Diameter Ball Valve, 1-1/2 in, Push-to-Connect, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: SBBV41
  • MPN: UXLBV41
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      Push-to-Connect
Item Name      :      Ball Valve
Material      :      DZR Brass
Operator Type      :      Zinc-Plated Steel Lever Handle
Packaging Material      :      PTFE
Pressure Rating      :      200 psi
Stem Material      :      Brass
Temperature Rating      :      200 deg F
Type      :      Large Diameter

Innovative push-to-connect design makes for quick and easy installations and allow you to join to PEX, copper, CPVC, PE-RT and HDPE pipe in any combination without a need for soldering, clamps, glue or unions. The valve can be rotated after installation making it easier to reach the shut-off. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • Lead-free
  • Compatible with PEX copper, CPVC, PE-RT and HDPE pipe
  • Ideal for freezes and other emergency repairs
  • Can be installed in wet lines
  • Can be rotated for easier and faster installation
  • No special tools, crimping, glue or soldering is needed
  • Ideal for working in tight spaces
  • Remove using a disconnect clip or disconnect tongs
  • Rated for 200 psi and 200 deg F

Standards/Certifications: IAPMO/ANSI Z1157, ANSI/NSF/CAN 61, ANSI/NSF 372 certified

Applications: For shut-off water flow For servicing and making repairs

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4359_Instal.pdf
