Sioux Chief 508-3PK

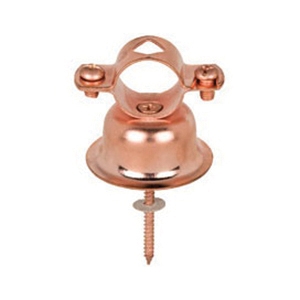

508 Copper-Plated 22 ga Steel Bell Hanger, 3/4 in CTS

  • Manufacturers: Sioux Chief Manufacturing
  • Brand Name: Sioux Chief
  • PN: SC508-3
  • MPN: 508-3PK
  • UPC: 739236203557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Copper-Plated
Gauge      :      22 ga
Height      :      1.66 in
Item Name      :      Bell Hanger
Material      :      Steel
Series      :      508
Tube Size      :      3/4 in CTS

Sioux Chief 508 series copper-plated bell hangers shall be used where necessary to support copper CTS in piping systems. Hanger shall be fastened directly to studs, joists or walls and secured with 2-1/2 in mounting screw (provided). Bell hanger shall minimally provide a 3/4 in. stand off distance from mounting surface. Hanger shall be copper-plated. Upper and lower pipe saddles of hanger shall fit 1/2 in, 3/4 in or 1 in CTS tube after screws are tightened. Upper pipe saddle may or may not have void in strap for easier installation.

  • Overhead
  • 13/16 in stand-off
  • Includes (2) clamp screws and (1) 2-1/2 in mounting screw
  • Recessed hole for mounting screw
  • Individually bagged
  • Non-domestic
