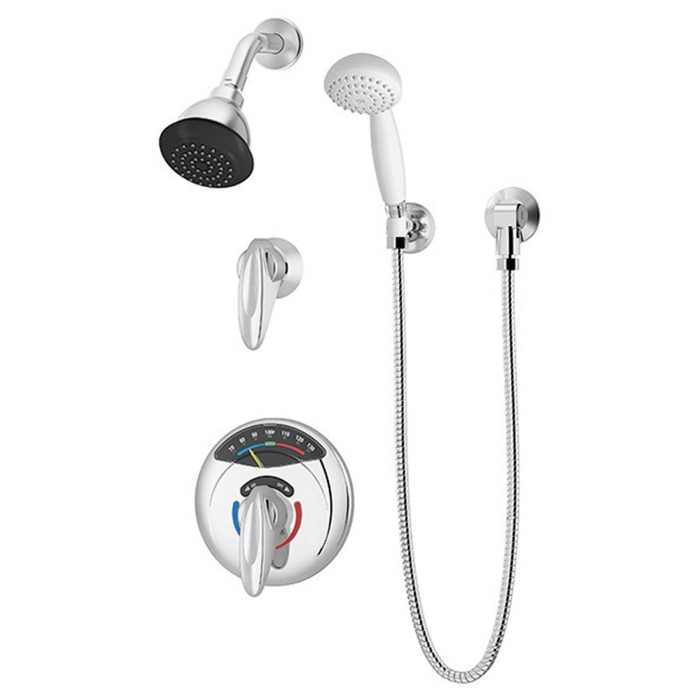

Symmons 1-117VT-FS

Visu-Temp Metal 2-Function Shower/Hand Shower System, Chrome

  • Manufacturers: Symmons Industries
  • Brand Name: Symmons
  • PN: SY1117VTFS
  • MPN: 1-117VT-FS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in IPS
Connection Type      :      MNPT
Finish      :      Chrome
Flow Rate      :      2.5 gpm
Hose Length      :      60 in
Item Name      :      Shower/Hand Shower System
Material      :      Metal
Mounting      :      Wall
Number of Handles      :      2
Shower Head Function      :      2-Function
Shower Head Shape      :      Round
Spout Reach      :      9-1/2 in
Sub Brand      :      Visu-Temp

Visu-Temp pressure-balancing mixing valve with integral thermometer and adjustable stop screw to limit handle turn. Lever diverter with volume control for shower head and hand spray. Super shower head with arm and flange. Wall/hand shower with flexible 5 ft metal hose, in-line vacuum breaker, wall connection and flange.

  • Visu-Temp shower/hand shower system
  • Visu-Temp pressure balancing valve
  • Metal lever handle
  • Adjustable stop screw to limit handle turn
  • Cradle for hand shower
  • Separate dual outlet diverter
  • In-line vacuum breaker
  • 60 in flexible metal hose
  • 1-mode hand shower
  • 2-mode showerhead

Standards/Certifications: ASME A112.18.1, CSA B125.1

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2619_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2619_Spec.pdf
