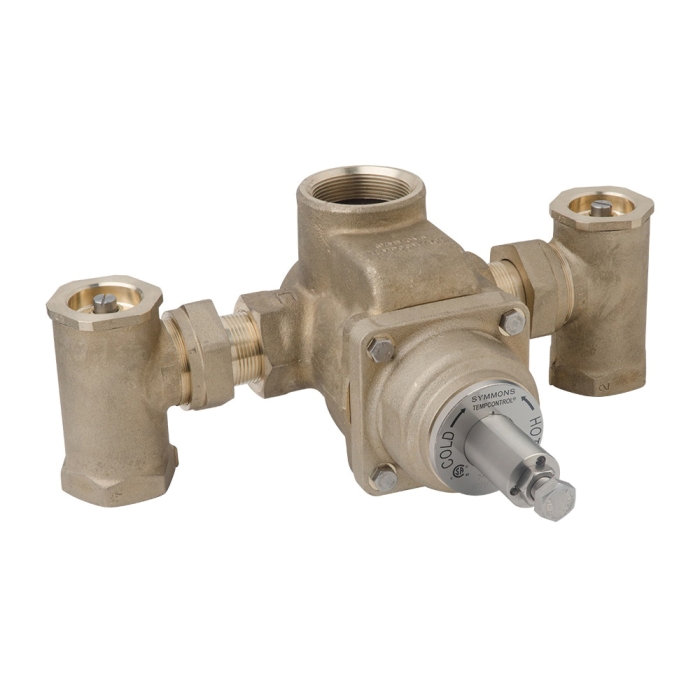

The brass, bronze and stainless steel components of the new 7 series TempControl lead-free valves allow for precise temperature control and meet federal lead-free requirements. The tamper-resistant hex bolt combined with the optional cabinets help prevent unwanted temperature adjustments.

• Backwards compatible with previous 6-1000 and 5-1000 series TempControl valves
• Lead-free brass, bronze, stainless steel construction
• Adjustable range within 5 deg of ambient water temperature up to 150 deg
• Focuses water on thermal motor to rapidly react to temperature changes
• 7 series cartridge and repair parts are interchangeable with 5 and 6 series models
• The entire valve control mechanism is housed in a replaceable cartridge unit which ensures the valve body never needs to be removed from the line
• Cartridge unit can be removed in minutes for cleaning, inspection or replacement
• Precise temperature control - (4) 360 deg handle rotations allow finer output temperature adjustment
• Integrated turbulator - focuses water on thermal motor to rapidly react to temperature changes, superior temperature control at low-flow rates
• Thermal motor to quickly respond to changes in inlet temperature
• Integrated stainless steel checkstops - prevents thermal bleed over, easy water shut-off at valve
• Limited lifetime warranty
• 5-years - for industrial/commercial installations
• 0.25% average lead content with respect to wetted surfaces, durable lead-free brass valve casting, lead-free bronze and stainless steel internal components
• 5 deg F approach temperature

Standards/Certifications: ASME A112.18.1, ASSE 1017, CSA B125.1, B125.3, NSF 61-9 and 372 certified
