Romac 511-1.66X1.66X5

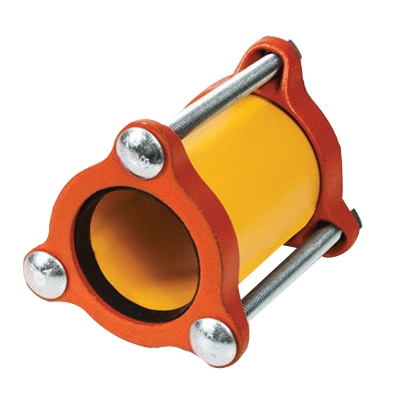

511 Yellow Shopcoat Ductile Iron Lightweight Coupling, 1-1/2 in

  • Manufacturers: Romac Industries
  • Brand Name: Romac
  • PN: RO511.112
  • MPN: 511-1.66X1.66X5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/2 in
Finish      :      Yellow Shopcoat
Item Name      :      Coupling
Length      :      5 in
Material      :      Ductile Iron
Model      :      511
Outside Diameter      :      1.9 in
Pressure Rating      :      200 psi
Type      :      Lightweight
  • Use flexibly couple pipes of the same or different diameters
  • Coupling with steel center rings
  • Color-coded red for OD and standard steel
  • Ductile iron per ASTM A536, grade 65-45-12 end rings
  • Gaskets - SBR per ASTM D2000 MBA 710, compounded for water and sewer service
  • Bolts and nuts: UNC rolled thread, mild steel, zinc-plated
  • (2) 1/2 x 6-1/2 in carriage bolt
  • Made in USA

Standards/Certifications: AWWA C219

Applications: For use with copper and steel pipe

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8166_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8166_Spec.pdf
