Nibco NL99K46

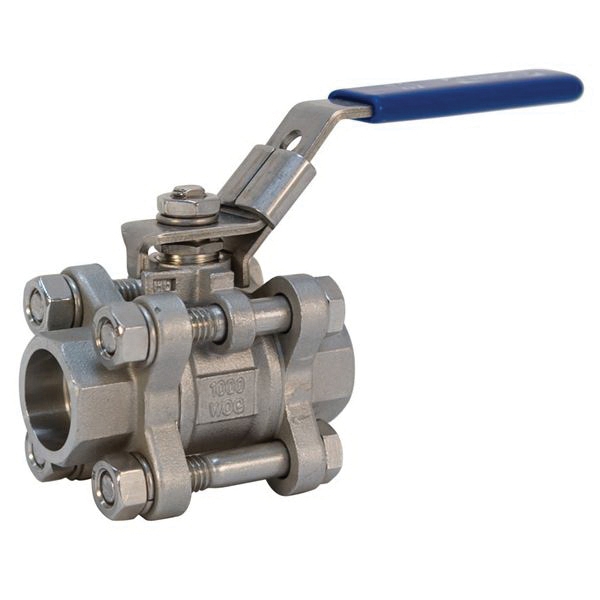

T-595-S6-R-66-LL Stainless Steel 3-Piece Full Port Ball Valve with Locking Lever Handle, 1/2 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: T595-S6-R66LL.12
  • MPN: NL99K46
  • UPC: 039923794079
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      316 Stainless Steel
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2.76 in L
Item Name      :      Ball Valve with Locking Lever Handle
Material Specifications      :      ASTM A276 Type 304 and 316, ASTM A193 B8 Type 304, ASTM A351 Type CF8M, ASTM A351 Type CF8M, ASTM A240 Type 304
Material      :      Stainless Steel
Model      :      T-595-S6-R-66-LL
Operator Type      :      304 Stainless Steel Lever Handle
Pressure Rating      :      1000 psi CWP Non-Shock
Seal Material      :      RPTFE
Seat Material      :      (2) RPTFE
Stem Material      :      316 Stainless Steel
Temperature Rating      :      400 deg F
Trim Material      :      316 Stainless Steel
Type      :      3-Piece, Full Port

The Nibco stainless steel ball valve provides bubble-tight shut-off at 1000 psi. This valve features threaded ends for easy installation. The 3-piece valve may be used on hot/cold water, HVAC and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only). The Nibco stainless steel ball valve provides ease of operation with quarter-turn (90 deg) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. Nibco ball valves are backed by the exclusive Nibco Inc. 5-years 125% limited warranty.

  • Blowout-proof stem
  • Vented ball
  • Stainless steel handle nut, threaded pack gland and locking handle, 304 stainless steel (4) lock washer, (4) cap bolt, carbon filled PTFE stem packing (1 set), (2) Reinforced PTFE Union Seal

Standards/Certifications: MSS SP-110 certified

Applications: For process piping, some chemical and utility service applications
