Nibco NJ2K00A

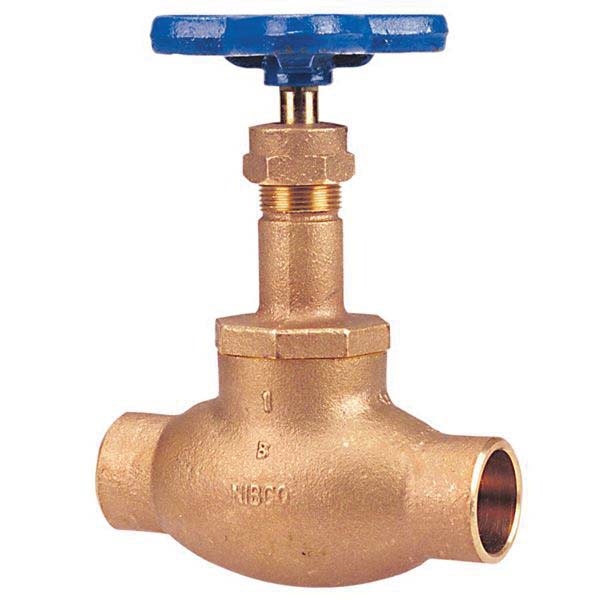

S-211-Y Class 125 Bronze Globe Valve, 1 in, Female Solder Cup

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: S211Y.1
  • MPN: NJ2K00A
  • UPC: 039923624451
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      Female Solder Cup
Dimension      :      3.69 in L
Disc Material      :      PTFE
Item Name      :      Globe Valve
Material Specifications      :      ASTM A47, ASTM B371, C69400/C69430, ASTM B62, ASTM B124, ASTM B98, C65100
Material      :      Bronze
Model      :      S-211-Y
Operator Type      :      Malleable Iron Handwheel
Packaging Material      :      Aramid Fibers with Graphite
Pressure Class      :      Class 125
Pressure Rating      :      200 psi CWP
Stem Material      :      Silicon Bronze

The Nibco bronze globe valve features a screw in bonnet with integral seat. The valve has a renewable PTFE seat disc. It is equipped with Class 125 solder ends for ease of installation. The globe valve is used for throttling or regulating flow. The Nibco bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Nibco globe valves are backed by the Nibco 5-years 125% limited warranty.

  • Integral seat
  • Screw-in bonnet
  • Renewable PTFE seat disc
  • Dezincification-resistant
  • 300 stainless steel handwheel nut, aluminum identification plate, bronze packing gland, packing nut, bonnet, disc holder nut, disc holder, bronze with stainless steel washer disc nut

Applications: For bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services
