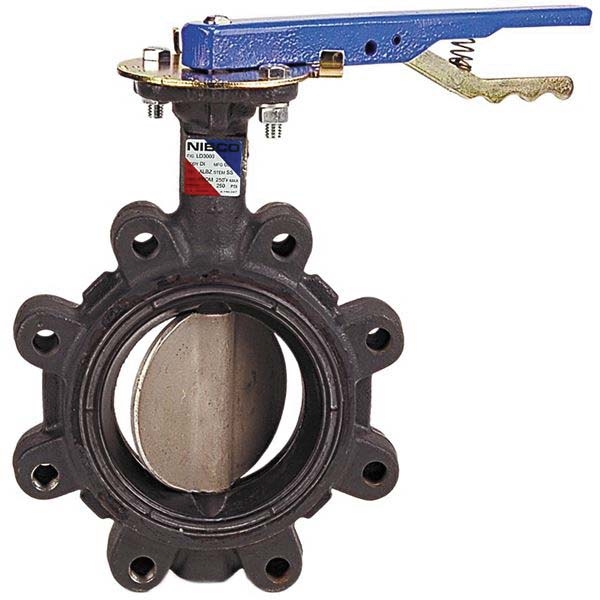

The Nibco lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shut-off at 250 psi. The valve performs well in isolation and throttling applications, commercial, and some light industrial processes. Nibco ductile iron butterfly valves provide ease of operation with quarter-turn (90 deg) open to close. The unique FKM fluoroelastomer molded-in seat liner with stainless steel disc is recommended for chemical applications the liner compatibility will permit. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Nibco butterfly valves are backed by the Nibco 5-years 125% limited warranty.

• FKM fluoroelastomer molded-in seat liner
• Stainless steel stem with stainless steel bushings
• Geometric drive
• Extended neck
• Not recommended for steam service
• Stainless steel collar bushing, upper and lower bushing, aluminum name plate

Standards/Certifications: MSS SP-67, MSS SP-25, US coast guard category A

Applications: For isolation and throttling applications, commercial and some light industrial processes

• Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18923_Instal.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS18942_Spec.pdf
