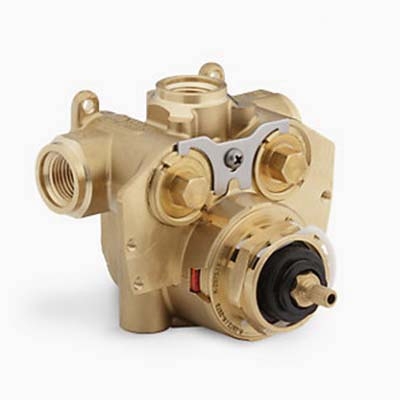

Kohler 2972-KS-NA

MasterShower Brass Thermostatic Mixing Valve, 1/2 in, FNPT

  • Manufacturers: Kohler
  • Brand Name: Kohler
  • PN: K2972KS
  • MPN: 2972-KS-NA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FNPT
Dimension      :      4-5/8 in L x 4-5/8 in W x 3-7/8 in H
Item Name      :      Thermostatic Mixing Valve
Material      :      Brass
Nominal Size      :      1/2 in
Pressure Rating      :      45 psi
Sub Brand      :      MasterShower

1/2 in MasterShower thermostatic valve. When paired with compatible trim, this valve delivers a high-temperature limit stop for added safety and a high-flow rate for precise, consistent temperature control.

  • High-flow thermostatic mixing valve
  • Thermostatic technology automatically maintains outlet temperature during water pressure fluctuations and/or inlet water temperature changes
  • 1-handle temperature control
  • 10.9 gpm flow rate at 45 psi
  • Service stops with integral filters
  • Provides automatic anti-scald protection
  • Adjustable comfort setting
  • Integrated adjustable high temperature limit stop to control maximum water temperature
  • Requires volume control (sold separately)
  • Requires thermostatic trim (sold separately)
  • Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
  • Advanced materials selected for resistance to seizing or attack from aggressive water conditions

Standards/Certifications: ASME A112.18.1/CSA B125.1, ASSE 1016/ASME A112.1016/CSA B125.16 certified

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17832_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17832_Spec.pdf
