Maxitrol 325-3.12

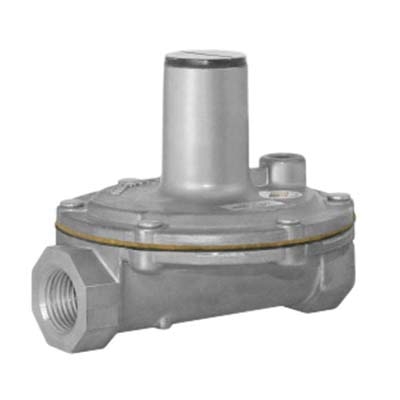

325 Aluminum Lever Acting Gas Pressure Regulator, 1/2 in, NPT, 10 psi Maxitrol Tested 2 psi LP 5 psi Natural

  • Manufacturers: Maxitrol
  • Brand Name: Maxitrol
  • PN: 325-3.12
  • MPN: 325-3.12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
BTU Rating      :      100000 Btu/hr
Connection Size      :      1/2 in
Connection Type      :      NPT
Dimension      :      4.2 In W x 3-1/2 In H
Item Name      :      Gas Pressure Regulator
Material      :      Aluminum
Model      :      325
Pressure Rating      :      10 psi Maxitrol Tested, 2 psi LP, 5 psi Natural
Temperature Rating      :      -40 to 205 deg F
Type      :      Lever Acting

Maxitrol's 325 series pounds to inches regulators are for use on residential, commercial, and industrial applications. The 325 series features a high leverage valve linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise control from full flow down to pilot flow.

  • Suitable for multi-positional mounting
  • 65 psi emergency exposure limits
  • 3 in swing radius
  • 1/8 in NPT vent size

Standards/Certifications: cCSAus, CE certified, ANSI Z21.18/CSA 6.3, CTP, UA.TR.012-13

Applications: For natural, manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
