Apollo Valves 78RV224125

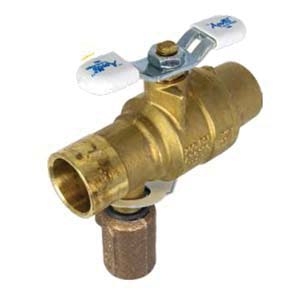

78-RV Brass Thermal Expansion Relief Valve, 3/4 in, Solder, 125 psi, Lead-Free

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 78RV224125
  • MPN: 78RV224125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Solder
Dimension      :      4.1 in H
Item Name      :      Thermal Expansion Relief Valve
Material Specifications      :      UNS C27451
Material      :      Brass
Pressure Rating      :      125 psi
Seat Material      :      RTFE
Series      :      78-RV
Stem Material      :      Brass
Temperature Rating      :      210 deg F

The lead-free Apollo 78-RV series combination water heater isolation valve/IAPMO approved thermal expansion relief device solves two code requirements while saving time, installation space and money, ideal alternative to expansion tanks in residential plumbing systems. Made in the USA, featuring lead free dezincification-resistant brass and bronze materials.

  • Lead-free
  • RTFE stem bearing
  • Stainless steel spring relief and silicone rubber seat relief
  • 3/8 in hose barb relief connection
  • 5-years warranty

Standards/Certifications: IAPMO IGC 128-2008, city of Los Angeles registered, ANSI/NSF 372, CSA B125.1 and B125.3 certified

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9941_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9941_Spec.pdf
