Legend Valve 105-704NL

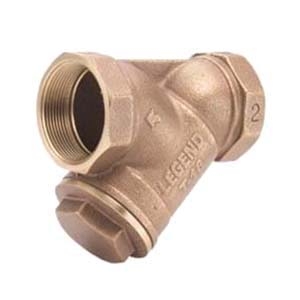

T-16 Cast Bronze Wye Strainer, 3/4 in, FNPT, 20 Mesh Screen, Lead-Free

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 105-704NL
  • MPN: 105-704NL
  • UPC: 662545083278
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FNPT
Dimension      :      2.76 in L
Item Name      :      Wye Strainer
Material Specifications      :      ASTM B584, UNS C89836, ASTM A240, UNS S30400
Material      :      Cast Bronze
Model      :      T-16
Pressure Rating      :      150 psi WSP, 300 psi CWP
Screen Type      :      20 Mesh
  • Lead-free design is suitable for all State and pending US federal public law (111-380) potable water installations
  • Compact pattern body is ideal for confined piping installations
  • Designed to protect downstream components, by trapping and holding debris under pressure
  • Gasketed screen cap is not drilled and tapped for a closure plug, but can be removed for cleaning and screen replacement
  • Equipped with a 304 stainless steel 20-mesh screen in strainer
  • The screen cap must be positioned downward when installing the T-16NL in the horizontal position, in the vertical-position, the media must flow downward
  • Body shell is hydrostatic pressure tested to 450 psi
  • Cast bronze cap, aramid fiber and nitrile binder gasket, 304 stainless steel screen or strainer

Standards/Certifications: ANSI/ASME B1.20.1, WQA certified, ISO standard

Applications: For protecting downstream components, by trapping and holding debris
