Victaulic C040730PE9

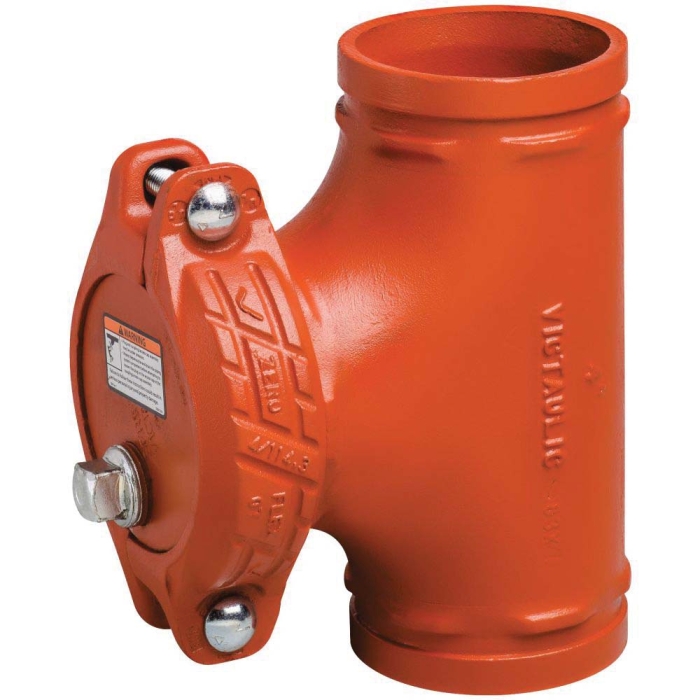

Vic-Strainer 730 Enamel Coated Ductile Iron Tee Strainer, 4 in, Grooved, 6 Mesh Screen

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI730.4
  • MPN: C040730PE9
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      4 in
Connection Type      :      Grooved
Dimension      :      10 in L x 8.21 in W
Finish      :      Enamel Coated
Flow Co-Efficient      :      425 Cv
Item Name      :      Tee Strainer
Material Specifications      :      ASTM A536, Grade 65-45-12, ASTM A449, ASTM A183
Material      :      Ductile Iron
Model      :      730
Pressure Rating      :      750 psi
Screen Type      :      6 Mesh
Sub Brand      :      Vic-Strainer
  • Lighter than flanged wye type strainers and provides straight-through flow for lower pressure drop
  • It installs with (2) Victaulic couplings and is rated up to 750 psi depending upon the installed coupling's pressure rating and size
  • A durable 304 stainless screen is provided
  • Access cap and integral rails permit easy basket removal for cleaning
  • Basket must be cleaned prior to obtaining 10 psi pressure differential across the basket
  • Enamel coated ductile iron end cap, 304 stainless steel frame and mesh, plated carbon steel bolts/nuts
