Victaulic V020786CBV

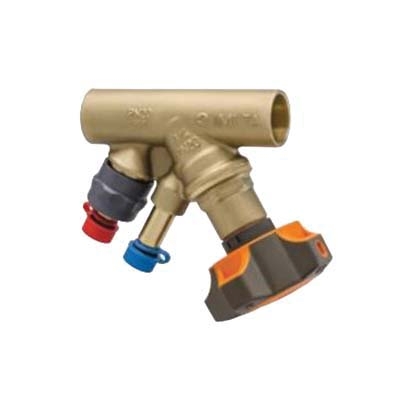

786 Brass Alloy Balancing Valve, 2 in, Solder, 300 psi

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI786.2
  • MPN: V020786CBV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      Solder
Dimension      :      2-3/8 in L
Flow Rate      :      110 gpm
Item Name      :      Balancing Valve
Material      :      Brass Alloy
Model      :      786
Operator Type      :      Polyamide and TPE Handwheel
Pressure Rating      :      300 psi
Temperature Rating      :      -4 to 250 deg F
  • EPDM O-ring seat seal, spindle seal, Ametal valve plug, spindle, measuring-points, drain kit body

Applications: For heating and cooling systems
