Woodford WO22CP10

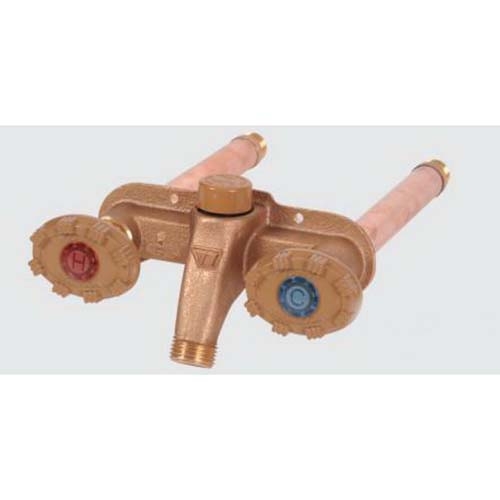

Rough Brass Freezless Hot and Cold Faucet, 2.5 gpm, 5 in Centers, 10 in THK

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WO22CP10
  • MPN: WO22CP10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Faucet Center Size      :      5 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      Male Pipe Thread x Sweat
Faucet Mount      :      Wall, Horizontal
Handle Material      :      Polycarbonate
Handle Type      :      Oval
Item Name      :      Hot and Cold Faucet
Length      :      7 in
Material      :      Rough Brass
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F
Type      :      Freezless
Width      :      3 in

The freezeless model 22 hot and cold faucet is designed and intended for year-round hot and cold irrigation and cleaning purposes regardless of outside temperature. Separate hot and cold inlet tubes allow for manually-operated temperature control with cross contamination protection. This faucet contains patented pressure relief valves that prevents the faucet from bursting in freezing weather should a hose be accidentally left on. The model 22 contains an integral backflow protection device and does not require and add-on vacuum breaker.

  • Faucet drains automatically when hose is removed
  • Permanent stainless steel seat will not wire draw
  • EPDM packing to prevent leaking
  • Full circle threads on valve body and retainer
  • No-lead solder - all solder joints
  • Seat washer - standard O size
  • Standard "O" size seat washer
  • No-lead solder
  • 3/4 in male hose thread
  • 10 in wall thickness

Standards/Certifications: ASSE 1019 type A, CSA certified, IAPMO, UPC listed
