Woodford B74C

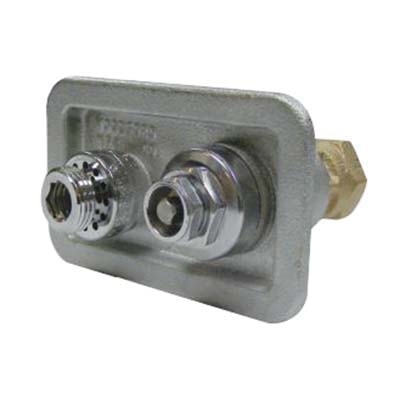

B74C Anti-Siphon Box Type Close Coupled Wall Hydrant, 3/4 in, Sweat

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WOB74C
  • MPN: B74C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      Sweat
Dimension      :      4-15/16 in L x 7-1/2 in W x 6-1/2 in H
Item Name      :      Wall Hydrant
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F
Type      :      Anti-Siphon, Box Type, Close Coupled

The model 74, B74, and RB74 are anti-siphon protected wall hydrants designed for irrigation purposes in mild climate areas or within temperature controlled malls and plazas.

  • Permanent type brass valve body with hemispherical seating surface
  • No-lead solder
  • Hardened stainless steel stem resists damage
  • EPDM rubber with adjustable packing nut
  • Tee key - loose key operates hydrant

Standards/Certifications: ASSE 1011, CSA certified, IAPMO listed
