Woodford B75

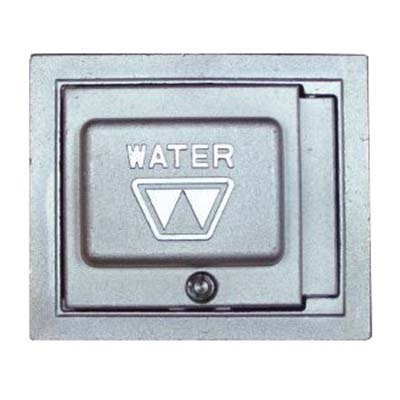

B75 Anti-Siphon Box Type Close Coupled Trimline Wall Hydrant, 3/4 in, FPT

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WOB75
  • MPN: B75
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in
Connection Type      :      FPT
Dimension      :      4 in L x 7-1/2 in W x 6-1/2 in H
Item Name      :      Trimline Wall Hydrant
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F
Type      :      Anti-Siphon, Box Type, Close Coupled

The model 75 and B75 are anti-siphon wall hydrants designed for irrigation purposes in mild climate areas or within temperature controlled buildings. The model 75 is only 2-5/8 in deep and fits inside a stud wall. The B75 fits inside a 4 in wall.

  • Permanent type brass valve body with hemispherical seating surface
  • Hardened stainless steel stem resists damage
  • EPDM rubber with adjustable packing nut
  • Tee key - loose key operates hydrant
  • Inlet swivels 360 deg to any position

Standards/Certifications: ASSE 1011, CSA certified, IAPMO listed
