A.Y. McDonald 4215-191
Send Print
  1. pin-int

A.Y. McDonald 4215-191

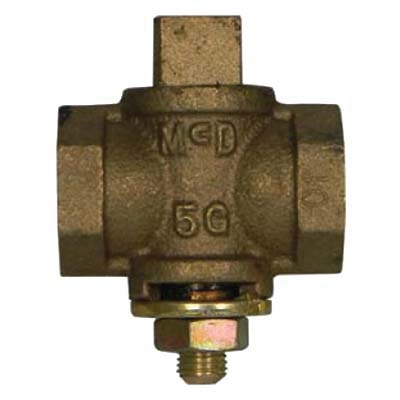

10596 Bronze Low Pressure Gas Plug Valve with Check with Lever Handle, 1/2 in, FNPT

  • Manufacturers: A.Y. McDonald Manufacturing
  • Brand Name: A.Y. McDonald
  • PN: MC1059812
  • MPN: 4215-191
  • UPC: 053565097954
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2.55 in L
Item Name      :      Low Pressure Gas Plug Valve with Check
Material      :      Bronze
Model      :      10596
Operator Type      :      Lever Handle
Pressure Rating      :      2 psig
Temperature Rating      :      32 - 125 deg F Ambient
  • Flat/tee head with check
  • Bronze body and plug manually-operated low pressure natural or propane gas valve

Standards/Certifications: ASME B16.44, CSA certified

Applications: For use indoors on house piping system between the meter outlet and the inlet connection of the gas appliance
