Apollo Valves 12-205-08

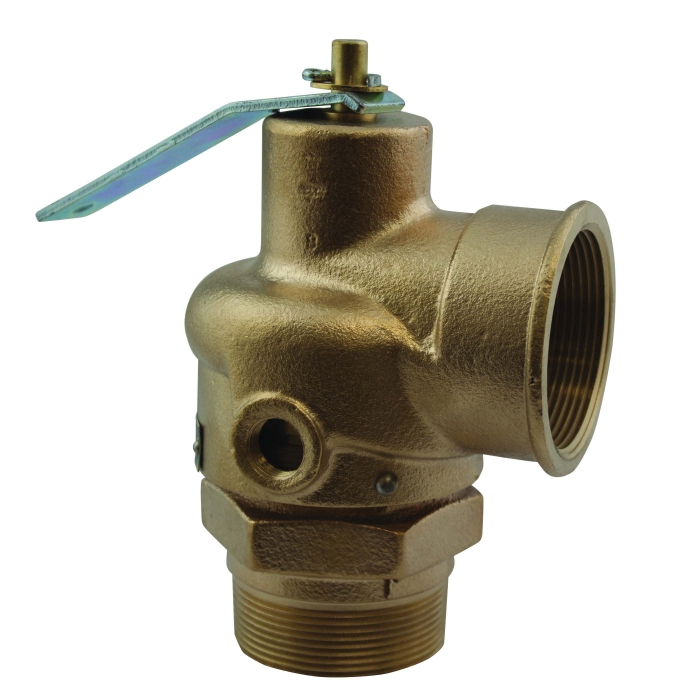

12-200 Bronze Low Pressure Steam Safety Valve, 2 in, MNPT x FNPT, 15 psig

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 12-205-08
  • MPN: 12-205-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      2500 lb/hr
Connection Size      :      2 in
Connection Type      :      MNPT x FNPT
Dimension      :      6 in H
Disc Material      :      Brass
Item Name      :      Steam Safety Valve
Material Specifications      :      ASTM B584, ASTM B16
Material      :      Bronze
Model      :      12-200
Operator Type      :      Steel Plated Handle
Pressure Rating      :      15 psig
Stem Material      :      Brass
Type      :      Low Pressure
  • Top guided, high-capacity design
  • Rust-proofed steel spring
  • 3/8 in NPT side tapping for drain connection
  • Bronze nozzle
  • Chrome-plated steel AISI 1010 drive screw and spring washer
  • Steel-plated handle assembly
  • Stainless steel spring
  • Brass stem nut, retainer ring, guide
  • Apollo valves medium capacity safety valves protect ASME section IV low pressure steam heating boilers
  • Cast bronze, full nozzle design features PTFE faced elastomeric soft seating for dependable operation

Standards/Certifications: ASME section IV, HV, NB, CRN 0G8547.5C certified

Applications: For medium and large commercial and industrial steam heating and processing boilers

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3063_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2916_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2916_Tech.pdf
