RWV 268AB 1

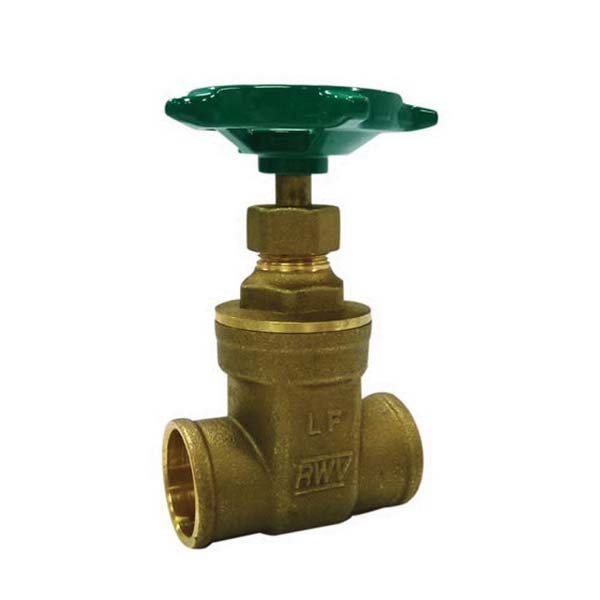

268AB Brass Non-Rising Stem Gate Valve, 1 in, Solder, Lead-Free

  • Manufacturers: Red-White Valve Corporation
  • Brand Name: RWV
  • PN: 268AB.1
  • MPN: 268AB 1
  • UPC: 670779258041
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      Solder
Dimension      :      2.28 in L
Disc Material      :      Brass
Item Name      :      Gate Valve
Material Specifications      :      ASTM B124, ASTM A36
Material      :      Brass
Model      :      268AB
Operator Type      :      Aluminum Handwheel
Packaging Material      :      PTFE
Pressure Rating      :      200 psi WOG
Stem Material      :      Brass
Temperature Rating      :      212 deg F
Type      :      Non-Rising Stem
  • Lead-free
  • Screw in brass bonnet
  • Solid wedge disc
  • Inserted bonnet
  • Brass bonnet, lock nut, gland nut, gland, steel nut, PTFE gasket, aluminum tag

Standards/Certifications: AB1953, ANSI/NSF 61 and 372 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4216_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4686_Spec.pdf
