Boshart Industries 08SVS-05FNL

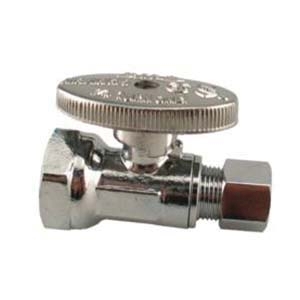

08SVS Chrome-Plated Brass 1/4-Turn Straight Supply Stop Valve, 1/2 x 3/8 in, FPT x Compression, Lead-Free

  • Manufacturers: Boshart Industries
  • Brand Name: Boshart Industries
  • PN: 08SVS-05FNL
  • MPN: 08SVS-05FNL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 3/8 in
Connection Type      :      FPT x Compression
Dimension      :      2.29 in L x 1.38 in H
Finish      :      Chrome-Plated
Item Name      :      Straight Supply Stop Valve
Material Specifications      :      C46500, C37700
Material      :      Brass
Pressure Rating      :      125 psi
Seat Material      :      PTFE
Series      :      08SVS
Stem Material      :      Brass
Temperature Rating      :      180 deg F
Type      :      1/4-Turn
  • Lead-free
  • Double NBR O-ring packing material
  • EPDM O-ring, chrome-plated ABS handle, 304 stainless steel lock nut, brass bonnet, forged brass compression ring and nut

Standards/Certifications: ANSI/ASME B1.20.1, SAE J512, ANSI/NSF 372 certified
