B-Line B3054.34

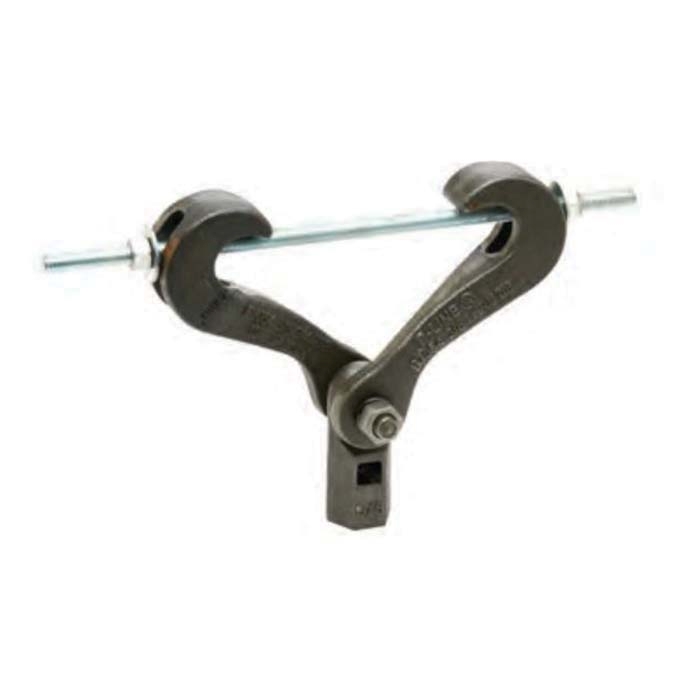

B3054 Plain Malleable Iron Beam Clamp with Extension, 10 in IPS

  • Manufacturers: Cooper Industries
  • Brand Name: B-Line
  • PN: B3054.34
  • MPN: B3054.34
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Plain
Item Name      :      Beam Clamp with Extension
Load Capacity      :      1365 lb
Material      :      Malleable Iron
Model      :      B3054
Nominal Size      :      10 in IPS
Rod Size      :      3/4-10
  • Designed for attaching a hanger rod to the bottom flange of a beam
  • Adjustable for flange widths of 3 - 7 in and a flange thickness of no greater than 5/8 in
  • Maximum iron pipe size per UL 10 in

Standards/Certifications: Federal specification WW-H-171E and A-A-1192A, type 30 and ANSI/MSS SP-69 and SP-58, type 30, cULus listed
