Refco 4675440

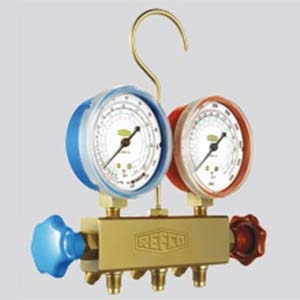

Apex Brass 2-Way Manifold with 5 ft Hose, 870 psi Working, 3600 psi Burst

  • Manufacturers: Refco Manufacturing
  • Brand Name: Refco
  • PN: 4675440
  • MPN: 4675440
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Item Name      :      Manifold with 5 ft Hose
Material      :      Brass
Measuring Range      :      870 psi Working, 3600 psi Burst
Refrigerant      :      R-22, R-134A, R-410A
Series      :      Apex
Type      :      2-Way
  • Swivel hook and 45 deg hose anchors
  • Color-coded handwheels
  • High quality brass body
  • All hoses are high pressure
  • 2-piece, O-ring seal piston style valve, repairable
  • Easy to read
  • Zero-point adjustable
  • Pulse-free and color-coded
  • Class 1.6 bourdon type gauges (KM), easy to read, zero-point adjustable, pulse-free and color-coded
