Trerice PWT122194
Send Print
  1. pin-int

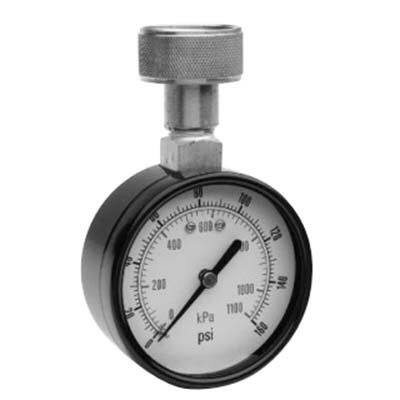

Trerice PWT122194

122 Black Steel 12 o'Clock Mount Utility Water Test Pressure Gauge, 2-1/2 in Dial, 0 - 160 psi/kPa

  • Manufacturers: H O Trerice
  • Brand Name: Trerice
  • PN: PWT122194
  • MPN: PWT122194
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      3-2-3%, Grade B
Connection Size      :      3/4 in
Connection Type      :      Female Hose-Bib
Depth      :      1.1 in
Dial Size      :      2-1/2 in
Diameter      :      4.2 in
Finish      :      Black
Item Name      :      Water Test Pressure Gauge
Material      :      Steel
Measuring Range      :      0 - 160 psi/kPa
Model      :      122
Mounting      :      12 o'Clock
Temperature Rating      :      150 deg F
Type      :      Utility

Trerice Water test gauges are integral tools for passing building inspections. Once the system has been pressurized, any leaks are visible as a pressure drop on the dial of the gas test gauge. The water test gauge has a 3/4 in NPT hose bib connection mounted at 12 o'clock for easy viewing and accurately measures in-line water pressure. A maximum register pointer is available on either gauge having a dial range of 60 psi or greater.

  • Wetted parts bronze tube, lead-free (PBF) brass socket
  • Steel, black-painted case
  • Steel, black-painted ring
  • Acrylic window
  • Steel, black-painted adjustable via screw on dial face pointer

Applications: For variety of general applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10095_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22255_spec.pdf
