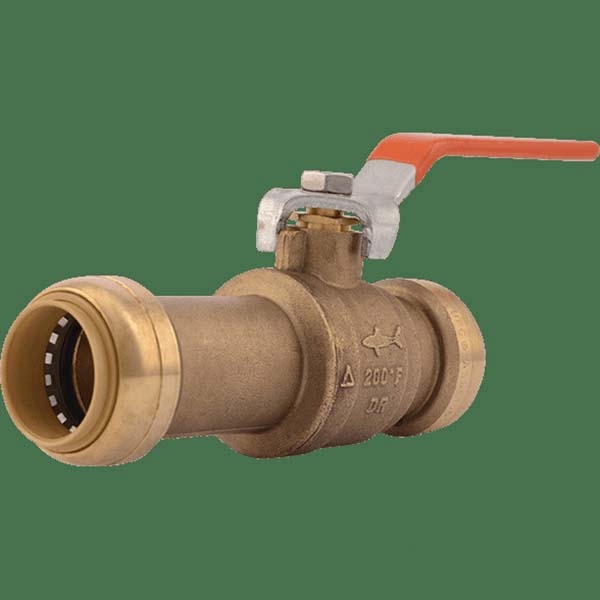

SharkBite 24737LF

DZR Brass Slip Ball Valve, 1 in, Push-to-Connect, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: 24737LF
  • MPN: 24737LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated DZR Brass
Connection Size      :      1 in
Connection Type      :      Push-to-Connect
Dimension      :      5-1/2 in L
Item Name      :      Slip Ball Valve
Material      :      DZR Brass
Operator Type      :      Zinc-Plated Steel Lever Handle
Packaging Material      :      PTFE
Pressure Rating      :      200 psi
Stem Material      :      Brass
Temperature Rating      :      200 deg F

Ideal for replacing or adding a new ball valve into an existing line to shut-off water flow for servicing and making repairs. Compatible with copper and CPVC pipe only.

  • Lead-free
  • Ideal for freezes and other emergency repairs
  • Can be installed in wet lines
  • No special tools, crimping, glue or soldering is needed
  • Ideal for working in tight-spaces
  • Remove using a disconnect clip or disconnect tongs

Standards/Certifications: IAPMO/ANSI Z1157, NSF/ANSI/CAN 61, ANSI/NSF 372, IGZ-157 certified

Applications: For copper and CPVC pipe only

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4365_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4499_Spec.pdf
