PHD PHD350.12

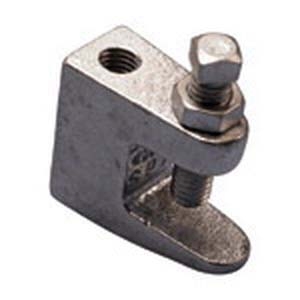

350 Plain Malleable Iron Beam Clamp, 1/2 in Rod

  • Manufacturers: PHD Manufacturing
  • Brand Name: PHD
  • PN: PHD350.12
  • MPN: PHD350.12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      1-1/2 in L
Finish      :      Plain
Item Name      :      Beam Clamp
Load Capacity      :      250 lb
Material      :      Malleable Iron
Rod Size      :      1/2 in
Series      :      350
  • Designed for attaching hanger rod to the top flange of a beam or bar joist, where the flange thickness does not exceed 3/4 in
  • The open U-design permits rod adjustment

Standards/Certifications: Federal specifications A-A1192A (type 19) and ANSI/MSS SP-58 (type 19), ANSI/MSS SP-69, cULus listed
