nVent Caddy 3150037PL

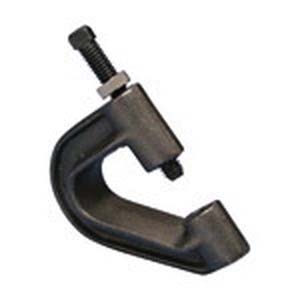

315 Black Plain Cast Iron Purlin Clamp, 4 in

  • Manufacturers: Erico
  • Brand Name: nVent Caddy
  • PN: MI315.38
  • MPN: 3150037PL
  • UPC: 78285639834
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Black
Finish      :      Plain
Item Name      :      Purlin Clamp
Load Capacity      :      400 lb
Material      :      Cast Iron
Nominal Size      :      4 in
Rod Size      :      3/8 in
Series      :      315
  • Attaches to lower flange of metal beams or purlins
  • Supports 45 deg flanges up to 2 long and 90 deg flanges up to 1-1/2 deg high

Standards/Certifications: Federal specification WW-H-171 (type 23), ANSI/MSS-SP-58 (type 23) certified
