PHD PHD345.38

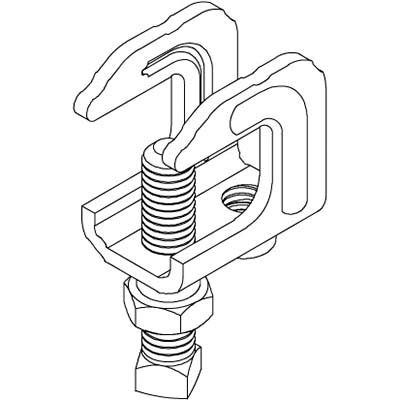

345 Electrogalvanized Carbon Steel Top Beam Clamp, 3/8 in Rod

  • Manufacturers: PHD Manufacturing
  • Brand Name: PHD
  • PN: PHD345.38
  • MPN: PHD345.38
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      1-9/16 in L
Finish      :      Electrogalvanized
Item Name      :      Top Beam Clamp
Load Capacity      :      610 lb
Material      :      Carbon Steel
Rod Size      :      3/8 in
Series      :      345
  • Designed for attaching hanger rod to the top flange of a beam or bar joist, where the flange thickness does not exceed 3/4 in
  • The open U-design permits rod adjustment

Standards/Certifications: Federal specifications A-A-1192A (Type 19) and ANSI/MSS SP-58 (Type 19), ANSI/MSS SP-69, cULus listed, FM approved
