Ametek USGP500.0.30

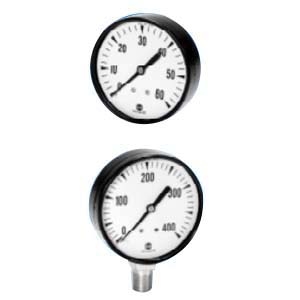

P500 Black Drawn Steel Back Mount Pressure Gauge, 1-1/2 in Dial, 0 - 30 psi

  • Manufacturers: Ametek
  • Brand Name: Ametek
  • PN: USGP500.0.30
  • MPN: USGP500.0.30
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      3-2-3% of Span
Connection Size      :      1/8 in
Connection Type      :      ANPT
Depth      :      1.55 in
Dial Size      :      1-1/2 in
Diameter      :      1.67 in
Finish      :      Black
Height      :      1.55 in
Item Name      :      Pressure Gauge
Material      :      Drawn Steel
Measuring Range      :      0 - 30 psi
Model      :      P500
Mounting      :      Back
Series      :      500
Width      :      1.6 in
  • Drawn steel, black corrosion-resistant paint case
  • Drawn steel, friction-fit, black corrosion-resistant paint ring
  • Aluminum, black finish pointer
  • Steel, white background with black markings dial
  • Brass movement

Applications: For general use wherever stem mounting is desirable and the pressure medium is non-corrosive to brass, phosphor bronze or beryllium copper, air, oil, gas and water services are the most common applications
