Victaulic V024726P0A

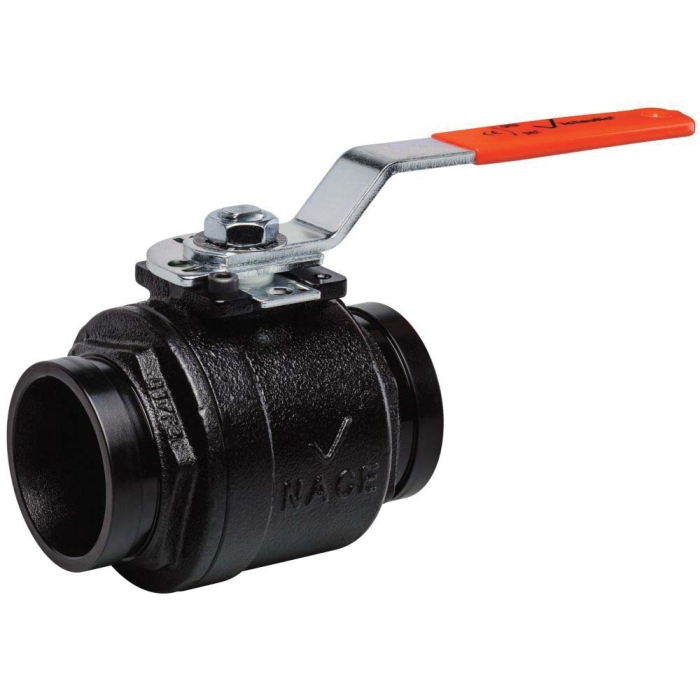

726 Ductile Iron Ball Valve, 2-1/2 in, Grooved

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI726.212
  • MPN: V024726P0A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Carbon Steel
Connection Size      :      2-1/2 in
Connection Type      :      Grooved
Dimension      :      6.3 in L
Flow Co-Efficient      :      340 Cv
Item Name      :      Ball Valve
Material Specifications      :      ASTM A395
Material      :      Ductile Iron
Model      :      726
Operator Type      :      Zinc-Plated Carbon Steel with Vinyl Grip Lever Handle
Pressure Rating      :      1000 psi
Seal Material      :      Fluoroelastomer
Seat Material      :      PTFE
Stem Material      :      Chrome-Plated Carbon Steel
  • High pressure standard-port ball valve with grooved ends
  • 2-piece, end-entry valve featuring a floating ball design
  • Throttling is not recommended with standard ball valves
  • Ductile iron end cap, black enamel coated hot-rolled steel operator bracket, zinc-plated cold-rolled steel bracket bolts/washers, zinc-plated stamped carbon steel integral locking drive components

Standards/Certifications: ASME A17.1-2007/CSA B44-07, NACE compliant

Applications: For full open or shut-off service
