Trerice 76-4D2

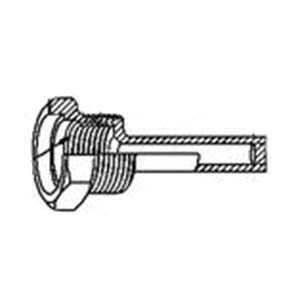

Brass Bimetal Thermowell, 3/4 in NPT, 2-1/2 in L Stem

  • Manufacturers: H O Trerice
  • Brand Name: Trerice
  • PN: 76-4D2
  • MPN: 76-4D2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bore Diameter      :      0.26 in
Connection Type      :      NPT
Insertion Length      :      1-3/4 in
Item Name      :      Thermowell
Material      :      Brass
Pressure Rating      :      3170 psi at 150 deg F
Shank Diameter      :      1/2 in
Size      :      3/4 in
Stem Length      :      2-1/2 in
Type      :      Bimetal
  • Provide leak-tight protection for applications where the process media may be corrosive or contained under pressure

Standards/Certifications: ASME B40.9, CRN certified

Applications: For bi-metal thermometers and temperature sensors
