Sioux Chief 570-20

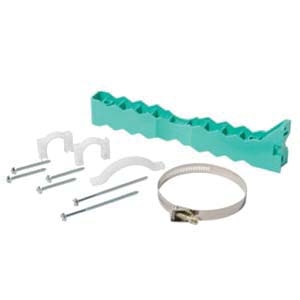

ABS Universal Bracket Kit, 4-1/2 in L

  • Manufacturers: Sioux Chief Manufacturing
  • Brand Name: Sioux Chief
  • PN: SC570-20
  • MPN: 570-20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Green
Item Name      :      Bracket Kit With (2) straps, (1) clamp, (1) 5 in stainless steel band
Length      :      4-1/2 in
Material      :      ABS
Type      :      Universal

Sioux Chief 570 series pipe Titan shall be used where necessary for bracketing applications. Bracket shall allow fastening on top or bottom edge. Molded pipe cradles shall be 1 in on center for quick and easy pipe alignment. Bracket shall have pilot holes for screws and slots for stainless steel bands. Bracket shall have holes on each end for 3/8 in thread rod for trapeze applications. Bracket shall prevent electrolysis and reduce noise caused by thermal expansion and contraction. Bracket and clamps shall be CPVC compatible. Bracket shall fit within a 2 x 4 wall when fastened to 2 in DWV pipe. Bracket shall be IAPMO listed.

  • Non-metallic, no electrolysis worries
  • Isolates pipe and reduces noise
  • Compatible with copper, PEX and CPVC
  • UV-stabilized
  • Made in USA
  • 5 in Dia stainless steel band

Standards/Certifications: cUPC, IAPMO listed
