Miro 3-RAH-8

Hot Dipped Galvanized Polycarbonate Roller Bearing Pipe Support, 7-1/2 in

  • Manufacturers: Miro Industries
  • Brand Name: Miro
  • PN: 3-RAH-8
  • MPN: 3-RAH-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Finish      :      Hot Dipped Galvanized
Item Name      :      Roller Bearing Pipe Support
Load Capacity      :      172 lb
Material      :      Polycarbonate
Nominal Size      :      7-1/2 in
Pipe Outside Diameter      :      3-3/4 in

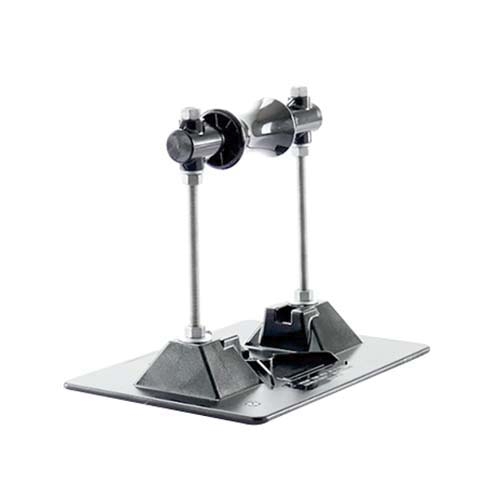

A roller-bearing pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 3-3/4 in (outside diameter) pipes.

  • Minimum clearance height of 3-7/8 in and maximum clearance height of 8 in
  • 3/8 in all-thread is stainless steel
  • Recommended spacing is not to exceed 10 ft centers
