Anvil 0840600050
Send Print
  1. pin-int

Anvil 0840600050

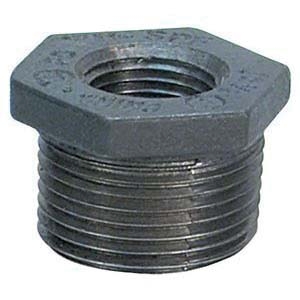

3283 Black Ductile Iron Inside Head Hex Bushing, 2 x 1 in, MNPT x FNPT

  • Manufacturers: Anvil International
  • Brand Name: Anvil
  • PN: DIB2.1
  • MPN: 0840600050
  • UPC: 69029194502
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 x 1 in
Connection Type      :      MNPT x FNPT
Finish      :      Black
Item Name      :      Hex Bushing
Length      :      1.29 in
Material Specifications      :      ASTM A536, Grade 65-45-12
Material      :      Ductile Iron
Model      :      3283
Pressure Rating      :      500 psi
Type      :      Inside Head

SPF/Anvil ductile iron pipe fittings conform to ASME B16.3 dimensions. Bushings and couplings conform to ASM B16.14. The threads are NPT per ANSI/ASME B1.20.1. Ductile iron is ASTM A536 grade 65-45-12. All SPF/Anvil ductile iron fittings are UL and ULC listed and FM approved.

Standards/Certifications: ASME B16.14, ASME B1.20.1, cULus listed, FM approved
