Mission Rubber CP 215

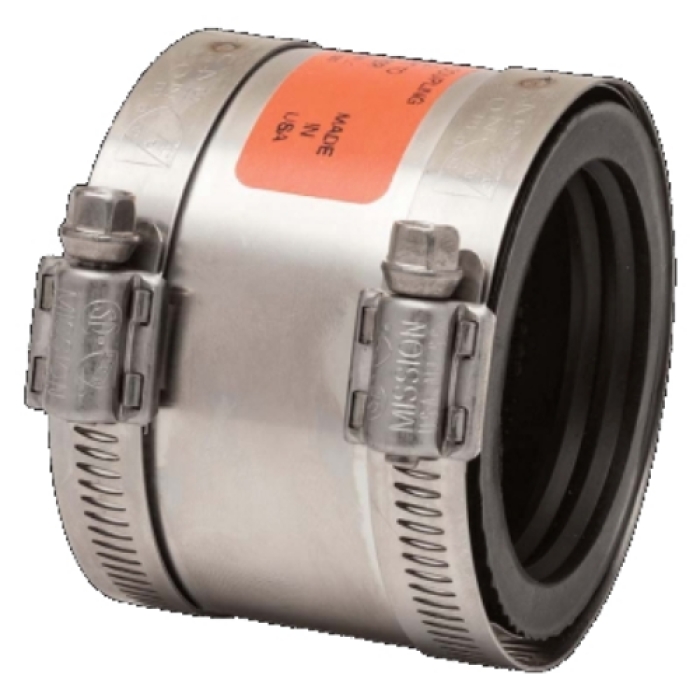

CP Band-Seal Shielded Reducing Transition Coupling, 2 x 1-1/2 in, Cast Iron/Plastic /Steel x Cast Iron/Plastic /Steel
- Manufacturers: Mission Rubber
- Brand Name: Mission Rubber
- PN: MICP215
- MPN: CP 215
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Connection Size | : | 2 x 1-1/2 in |
Connection Type | : | Cast Iron/Plastic /Steel x Cast Iron/Plastic /Steel |
Item Name | : | Reducing Transition Coupling |
Material Specifications | : | ASTM A240/A240M, ASTM C564 and C1460 |
Series | : | CP |
Sub Brand | : | Band-Seal |
Type | : | Shielded |
Shielded, transition couplings designed to connect similar and dissimilar pipe materials and sizes. Join cast iron, copper, Schedule 40 plastic, stainless steel, steel, tubular, thinwall plastic and extra heavy cast iron pipe. For non-pressure, gravity flow applications only. Recommended for above ground installations. Easy to install and reuse.
- Mission's Band-Seal specialty coupling is a shielded transition coupling designed to connect similar and dissimilar pipe sizes and materials
- Coupling consists of (2) or (4) 301 series stainless steel worm drive clamps, a 300 series stainless steel shield over a molded 1-piece elastomeric sealing gasket
- Leak-proof seal - stainless steel clamps provide a positive seal when properly tightened to 60 in-lb of torque
- Sealing O-rings are installed under each sealing clamp to prevent pipe slippage and create a more positive seal, ensuring a watertight, leak-proof and root-proof seal
- Corrosion-resistant - 300 series stainless steel components provide highly-effective corrosion-resistance in a variety of environments
- Joint movement restraint - The Band-Seal specialty coupling provides for superior load bearing control between the coupling and pipe surface
- The coupling's rugged construction provides excellent sealing properties and the stainless steel shield offers excellent-resistance to shear forces and helps with alignment, while maintaining flexibility
- Internal pipe stop - for proper pipe positioning and noise/vibration reduction
- Pre-set calibration - all Band-Seal specialty couplings are designed to be installed with a pre-set torque wrench calibrated to 60 in-lb, maximum to accommodate the 305 series stainless steel 5/16 in hex head screw
Standards/Certifications: CSA B602 certified, UPC 0743 listed
Applications: For non-pressure, gravity flow applications
