SharkBite

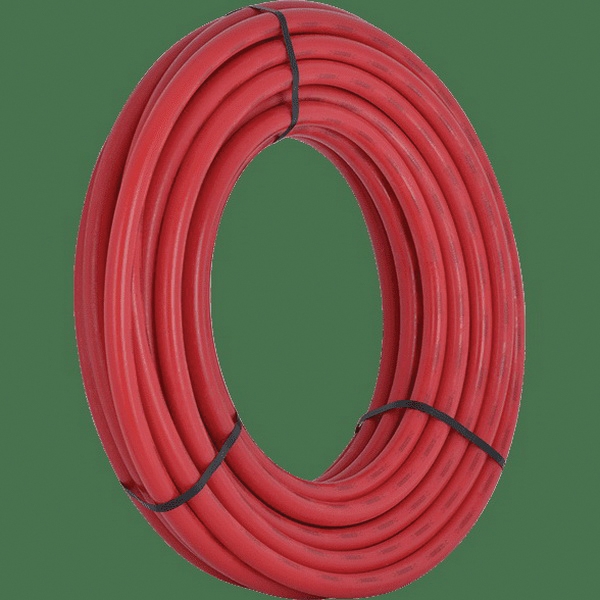

EvoPEX Red Cross-Linked Polyethylene PEX Pipe, 1/2 in, 100 ft L, Coiled

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: U860R100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Red
Connection Type      :      PEX
Inside Diameter      :      0.475 in
Item Name      :      Pipe
Length      :      100 ft
Material Specifications      :      ASTM F2023, ASTM F2657, ASTM F877, ASTM E84, ASTM F876
Material      :      Cross-Linked Polyethylene
Nominal Size      :      1/2 in
Outside Diameter      :      5/8 in
Packaging Type      :      Coil
Pressure Rating      :      160 psi
Sub Brand      :      EvoPEX
Temperature Rating      :      33 - 200 deg F
Wall Thickness      :      0.07 in

SharkBite PEX pipe is an cost effective piping solution approved for use in both hot and cold plumbing installations. Meeting the highest chlorine resistance standards and utilizing the most energy-efficient manufacturing processes, our PEX pipe is proudly produced in Alabama. We own our manufacturing process from start to finish, so every piece of SharkBite PEX pipe is guaranteed from concept to delivery. PEX pipe was introduced to North America in 1984 based on European market success, and was tested extensively for durability and material performance. All USA-installed PEX pipe must meet the qualification requirements as specified in the ASTM PEX Standards. SharkBite PEX Pipe can bend up to 6-times the outside diameter of the pipe - which is the maximum bend radius recommended by PEX pipe manufacturers.

  • Flexibility - reduces the number of fittings needed to complete jobs, saving on overall cost and reducing leak-points
  • Chlorine and UV-resistance - highest rated chlorine resistance, 6 months UV-resistance
  • Freeze-resistance - PEX pipe is freeze-resistant and can expand slightly if frozen, PEX will contract back to its original form when thawed, PEX is not freeze-proof, PEX should be insulated to prevent freezing
  • Insertion depth markings - pre-printed insertion depth markings for SharkBite universal push-to-connect fittings
  • Quick installation - PEX-b offers faster installation compared to rigid pipe, 6-months UV-resistance and the highest-rated chlorine-resistance
  • Approved for water service lines and burial applications including being buried under concrete
  • Made in USA
  • 25-years warranty

Standards/Certifications: CAN/ULC S102.2, AWWA C904, ANSI/NSF 14 and 61, CSA B137.5 certified

Applications: For residential and commercial, potable water
