WardFlex 434

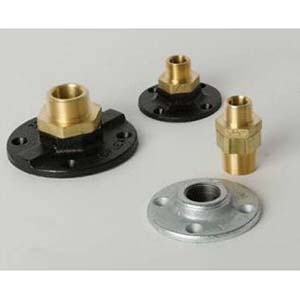

Brass Outdoor Termination Fitting, 1-1/4 in, Flanged x MNPT

  • Manufacturers: Ward Manufacturing
  • Brand Name: WardFlex
  • PN: WF32MX1B.WF
  • MPN: 434
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 in
Connection Type      :      Flanged x MNPT
Item Name      :      Termination Fitting
Length      :      2-5/16 in
Material      :      Brass
Pressure Rating      :      25 psi
Type      :      Outdoor

The 3/8 - 1-1/4 in Wardflex tubing is terminated using the patented, stepsaver double seal fitting. The 1-1/2 and 2 in tubing utilize the Wardflex traditional gasketed fitting design. Only fittings and designed and listed for use with the Wardflex and Wardflex max CSST piping systems shall be used when connecting to the flexible piping.

  • Provides fixed-point termination on wall or floor
  • One corrugation crush seal
  • Reusable
  • 3/8 - 1-1/4 in patented STEPSAVER fittings
  • Primary metal to metal seal
  • Secondary gasket seal
  • Includes male NPT body, retainer ring, flange termination nut, gasket, outdoor fittings are supplied with O-rings
  • Approved for concealed use

Standards/Certifications: CSA 112940_0_000, ICC-ESR-1879, IAPMO 3353 listed

Applications: For use with the Wardflex and Wardflex max CSST piping systems
