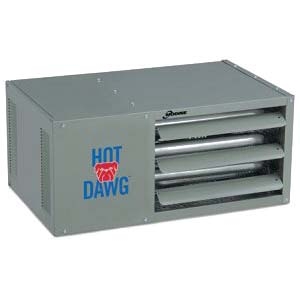

Modine HD125AS0111
Hot Dawg HD Baked-On Polyester Powder-Painted 20 ga Aluminized Steel Power-Vented Unit Heater, 115 VAC, 125000 Btu/hr Input, 100000 Btu/hr Output
- Manufacturers: Modine Manufacturing
- Brand Name: Modine
- PN: HD125AS0111
- MPN: HD125AS0111
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| Amperage Rating | : | 4.75 A |
| BTU Rating | : | 125000 Btu/hr Input, 100000 Btu/hr Output |
| CFM Rating | : | 1980 cfm |
| Connection Type | : | 1/2 in Gas |
| Dimension | : | 35-1/2 in W x 20-1/2 in H x 31 in D |
| Fan Size | : | 18 in Dia |
| Finish | : | Baked-On Polyester Powder-Painted |
| Flow Rate | : | 747 fpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/8 hp |
| Heat Throw | : | 56 ft |
| Ignition Type | : | Direct Spark |
| Item Name | : | Unit Heater |
| Material | : | 20 ga Aluminized Steel Cabinet |
| Maximum Mounting Height | : | 16 ft |
| Motor Type | : | PSC |
| Phase | : | 1 ph |
| RPM | : | 1625 rpm |
| Series | : | HD |
| Sub Brand | : | Hot Dawg |
| Type | : | Power-Vented |
| Voltage Rating | : | 115 VAC |
Modine's Hot Dawg is widely recognized as the industry's most popular residentially-certified gas-fired unit heater. It is an ideal solution for residential garages and workshops, along with light commercial or industrial applications.
- Use your workspace - comfortably - year-round
- Free-up more workspace by getting rid of space heaters that clutter-up the area
- Quieter garage with the Hot Dawg thanks to noise levels less than other units
- Trouble-free motor dependability
- Simplified side-wall or roof venting with small-diameter vent pipes
- Hush-puppy quiet operation
- Lightweight, easy installation 1 in from ceiling
- Power vented model simplifies side-wall or roof venting with small diameter vent pipe
- Finger-proof fan guards on all units
- Permanently lubricated motor
- 10-years warranty on heat exchanger
