Modine PDP150AE0130
PDP Baked-On Polyester Powder-Painted 20 ga Aluminized Steel 1-Stage Power-Vented Gas-Fired Unit Heater, 115 VAC, 150000 Btu/hr Input, 120000 Btu/hr Output
- Manufacturers: Modine Manufacturing
- Brand Name: Modine
- PN: PDP150AE0130
- MPN: PDP150AE0130
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| Amperage Rating | : | 4.05 A |
| BTU Rating | : | 150000 Btu/hr Input, 120000 Btu/hr Output |
| CFM Rating | : | 2180 cfm |
| Connection Type | : | 1/2 in Gas |
| Dimension | : | 21 in W x 35-1/4 in H x 29-13/16 in D |
| Fan Size | : | 16 in Dia |
| Finish | : | Baked-On Polyester Powder-Painted |
| Flow Rate | : | 931 fpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/8 hp |
| Heat Throw | : | 55 ft |
| Ignition Type | : | Intermittent Pilot |
| Item Name | : | Unit Heater |
| Material | : | 20 ga Aluminized Steel Cabinet |
| Maximum Mounting Height | : | 16 ft |
| Motor Type | : | PSC |
| Mounting | : | Vertical |
| Phase | : | 1 ph |
| RPM | : | 1625 rpm |
| Series | : | PDP |
| Type | : | 1-Stage, Power-Vented, Gas-Fired |
| Voltage Rating | : | 115 VAC |

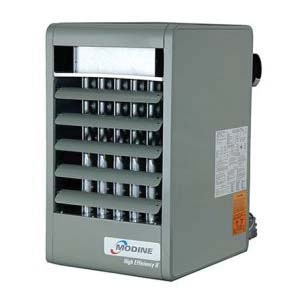

The PDP high-efficiency II gas-fired unit heaters are a generation of products that are inexpensive to install, easy to use, and offer excellent in-service economy.
- 82% thermal-efficiency, maximizing seasonal-efficiency through the use of a collector box and the power exhauster
- A power exhaust that can be rotated 180 deg, the unit can be vented vertically or horizontally
- A 100% shut-off, intermittent pilot-ignition system with continuous retry, at no extra charge, this ignition system allows for all PDP units to be field-converted to propane, if desired
- A safety pressure switch to assure safe venting conditions
- Designed to utilize the smallest diameter vent pipe possible
- "Wing" screws so that the bottom pan can be dropped without a screwdriver or nut driver
- A levels hanging mechanism for easy field adjustments after adding accessories that may change the unit's center of gravity
- Made in USA
Standards/Certifications: UL, ETL listed, ANSI Z83.8, CSA certified
Applications: For commercial use
