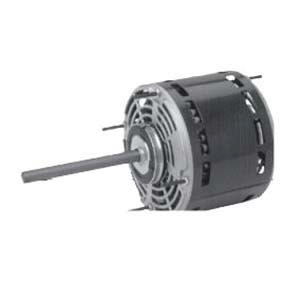

US Motor 8904

Permanent Split Capacitor Fan and Blower Motor, 120 VAC, 3/4 hp, 1075 rpm, Reversible

  • Manufacturers: Nidec Motor Corporation
  • Brand Name: US Motor
  • PN: US8904
  • MPN: 8904
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      9.5 A
Bearing Type      :      Sleeve
Blower Type      :      Direct Drive
Dimension      :      10.4 in L x 5.6 in Dia
Frame Size      :      48Y
Frequency Rating      :      60 Hz
HP Rating      :      3/4 hp
Insulation Class      :      B
Item Name      :      Fan and Blower Motor
Motor Enclosure      :      Open Air Over
Mounting      :      Band/Hub/Stud
Number of Speeds      :      3
Phase      :      1 ph
RPM      :      1075 rpm
Rotation      :      Reversible
Shaft Size      :      4 in L x 1/2 in Dia
Temperature Rating      :      40 deg C Ambient
Type      :      Permanent Split Capacitor
Voltage Rating      :      120 VAC
  • Stud extensions on popular models
  • Designed for use with 370 V capacitors
  • 24 in leads
  • Continuous-duty, air over
  • Sleeve bearings have all angle thrust system
  • Automatic reset thermal overload protector
  • 2-1/2 in Dia hub rings included

Applications: For residential and commercial direct-drive fans and blowers
