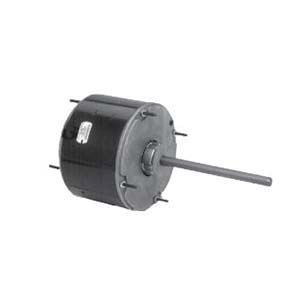

US Motor 5465

Permanent Split Capacitor Condenser Motor, 208 - 230 VAC, 1/2 - 1/5 hp, 1075 rpm, Reversible

  • Manufacturers: Nidec Motor Corporation
  • Brand Name: US Motor
  • PN: US5465
  • MPN: 5465
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      12.5/10 A
Bearing Type      :      Ball
Dimension      :      10.3 in L x 5.6 in Dia
Frame Size      :      48Y
Frequency Rating      :      60 Hz
HP Rating      :      1/2 - 1/5 hp
Insulation Class      :      B
Item Name      :      Condenser Motor
Motor Enclosure      :      Totally Enclosed Air Over
Mounting      :      Stud
Number of Speeds      :      2
Phase      :      1 ph
RPM      :      1075 rpm
Rotation      :      Reversible
Shaft Size      :      5 in L x 1/2 in Dia
Temperature Rating      :      140 deg F Ambient
Type      :      Permanent Split Capacitor
Voltage Rating      :      208/230 VAC
  • Sleeve bearings have all angle thrust system
  • Designed for use with 370 V capacitors
  • Extended studs
  • 30 in leads
  • Hubless lead end
  • Drain holes both ends
  • Automatic reset thermal overload protector
  • Continuous-duty

Applications: For residential and commercial condensing unit
