ICM Controls ICM292

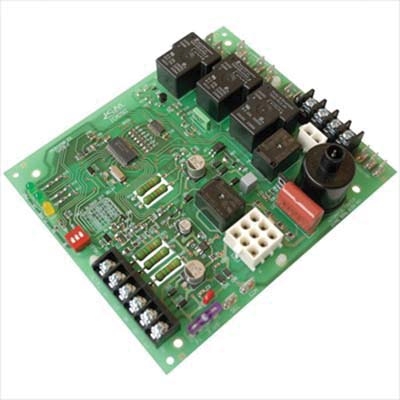

Gas Ignition Control Board, 24 VAC, 5-3/4 in L x 6-5/8 in W x 2-1/2 in H

  • Manufacturers: ICM Controls Corporation
  • Brand Name: ICM Controls
  • PN: ICM292
  • MPN: ICM292
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.3 A
Dimension      :      5-3/4 in L x 6-5/8 in W x 2-1/2 in H
Frequency Rating      :      60 Hz
Item Name      :      Gas Ignition Control Board
Temperature Rating      :      -40 to 176 deg F
Time Delay      :      90, 120, 160 and 180 s Post-purge, 1 hr Lockout, 30 s Pre-purge
Voltage Rating      :      24 VAC
  • Direct spark ignition (DSI) control board
  • Microprocessor based design
  • Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor and the gas valve
  • Monitors timing, trial for ignition, system switches, flame sensing and lockout
  • 100% lock-out safety feature
  • Compatible with LP or natural gas
  • LED indication for status and fault codes to aid in trouble-shooting
  • Thermostat interface: R, W, Y and G
  • System switches: vent pressure and limit switches (main and over-temperature switches in series)
  • Flame sensing
  • Heat blower Off delay miniature slide switch set
