Nibco NL40004

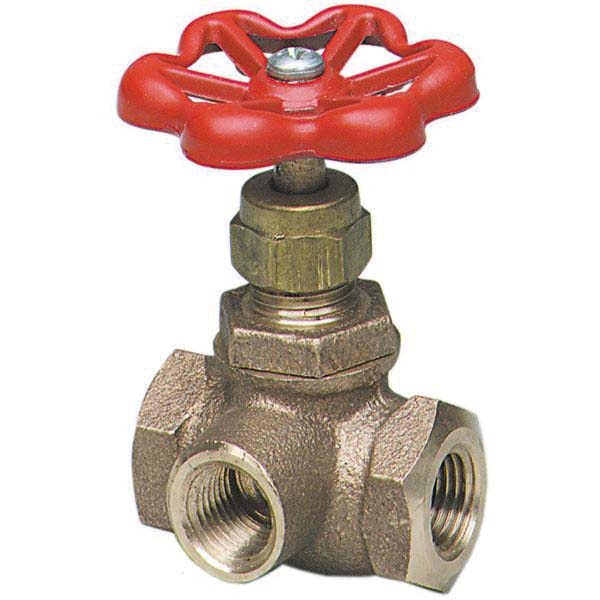

KT-291-W3 Class 125 Bronze 3-Way Globe Valve, 1/4 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: KT291W3
  • MPN: NL40004
  • UPC: 039923630735
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      FNPT
Dimension      :      1-3/4 in L x 2-1/4 in H
Disc Material      :      Nitrile
Item Name      :      Globe Valve
Material Specifications      :      ASTM B85, C38000, ASTM B133, C10200, ASTM B16, C36000, ASTM B584, C84400, ASTM A276, S43000
Material      :      Bronze
Model      :      KT-291-W3
Operator Type      :      Aluminum Handwheel
Packaging Material      :      Non-Asbestos Aramid Fibers with Graphite
Pressure Class      :      Class 125
Pressure Rating      :      400 psi WWP Non-Shock
Stem Material      :      Copper
Type      :      3-Way

The Nibco 3-way bronze globe valve is recommended for trim valve application in an automatic fire sprinkler system. It is typically used to attach a pressure gauge to the system. The resilient seat allows positive shut-off at 400 psi WWP. The Nibco 3-way bronze globe, 400 psi WWP, valve features a screw-in bonnet with integral seat and renewable seat disc of Buna-N material. It is equipped with female threaded ends for ease of installation. Nibco globe valves are backed by the Nibco 5-years 125% limited warranty.

  • Integral seat
  • Screw-in bonnet
  • Renewable seat disc
  • Dezincification-resistant

Applications: For automatic fire sprinkler system
