Nibco N53XA1A

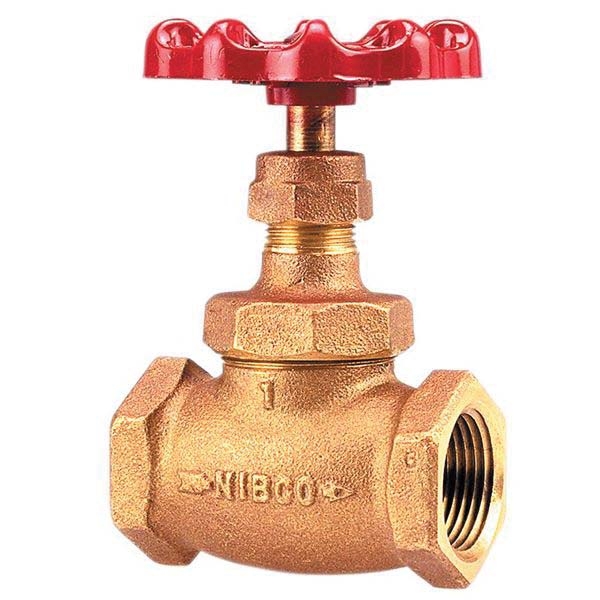

KT-65-UL Class 125 Bronze Globe Valve, 1 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: KT65UL.1
  • MPN: N53XA1A
  • UPC: 039923601483
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      FNPT
Dimension      :      3.12 in L
Disc Material      :      Buna-N
Item Name      :      Globe Valve
Material Specifications      :      ASTM B584, C84400, C84400
Material      :      Bronze
Model      :      KT-65-UL
Operator Type      :      Aluminum Handwheel
Packaging Material      :      Non-Asbestos Graphite
Pressure Class      :      Class 125
Pressure Rating      :      175 psi WWP
Stem Material      :      Bronze

The Nibco bronze globe valve is recommended for trim valve application in an automatic fire sprinkler system. The resilient seat allows positive shut-off at 175 psi WWP. The Nibco bronze globe 175 psi WWP valve features a screw-over bonnet with integral seat and renewable seat disc. The seat disc is available in Buna-N material. It is equipped with female threaded ends for ease of installation. Nibco globe valves are backed by the Nibco 5-years 125% limited warranty.

  • Integral seat
  • Screw-over bonnet
  • Renewable seat disc
  • Dezincification-resistant
  • Carbon steel handwheel screw, bronze packing nut, bonnet, graphite impregnated (non-asbestos) packing, EPDM rubber seat disc, stainless steel seat screw, sheet brass pack washer

Standards/Certifications: UL listed

Applications: For automatic fire sprinkler system
