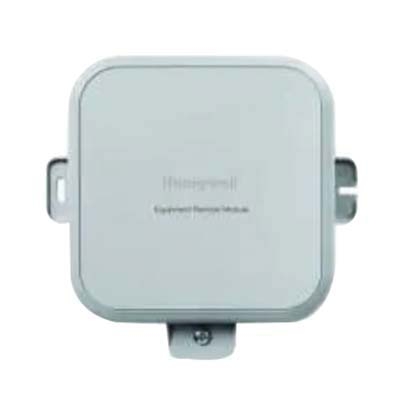

Honeywell ERM5220R1018/U

Gray Equipment Remote Module for Wireless RedLink Communication Between Boiler and Thermostat, 24 VAC, 6-39/64 in W x 6-39/64 in H x 1-31/64 in D

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: ERM5220R1018
  • MPN: ERM5220R1018/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Gray
Dimension      :      6-39/64 in W x 6-39/64 in H x 1-31/64 in D
Frequency Rating      :      50/60 Hz
Humidity Rating      :      0 - 99% Relative Humidity
Item Name      :      Equipment Remote Module
Temperature Rating      :      -40 to 155 deg F Compressor, 30 - 130 deg F Boiler
Voltage Rating      :      24 VAC

The Honeywell ERM is like a new cordless tool in your toolbox. Pull it out whenever it's too costly or time-consuming to run wires from a condensing unit or boiler to control devices. There are fewer holes to drill and wires to run. Just faster, easier installation that gives you more profit per job. Make the Honeywell ERM your go-to choice for fast, easy equipment installation.

  • Wireless RedLink communication between condensing unit/compressor or boiler and thermostat
  • Eliminates the need to run additional wires to your equipment, for example, during a heat pump upgrade
  • Suitable for outdoor use
  • Temperature sensor terminals for outdoor temp sensors or indoor freeze protection
  • LEDs for easy installation check-out
  • May reduce damage to homes since wiring/drilling is eliminated
  • 0 - 99% relative humidity
  • Attach the ERM to the wall near the compressor or boiler
  • The location should be at least 3 ft above ground and oriented with the 2-wire exits facing downward

Standards/Certifications: Complies with FCC Part 15a

Applications: For Wireless RedLink communication between condensing unit/compressor or boiler and thermostat
